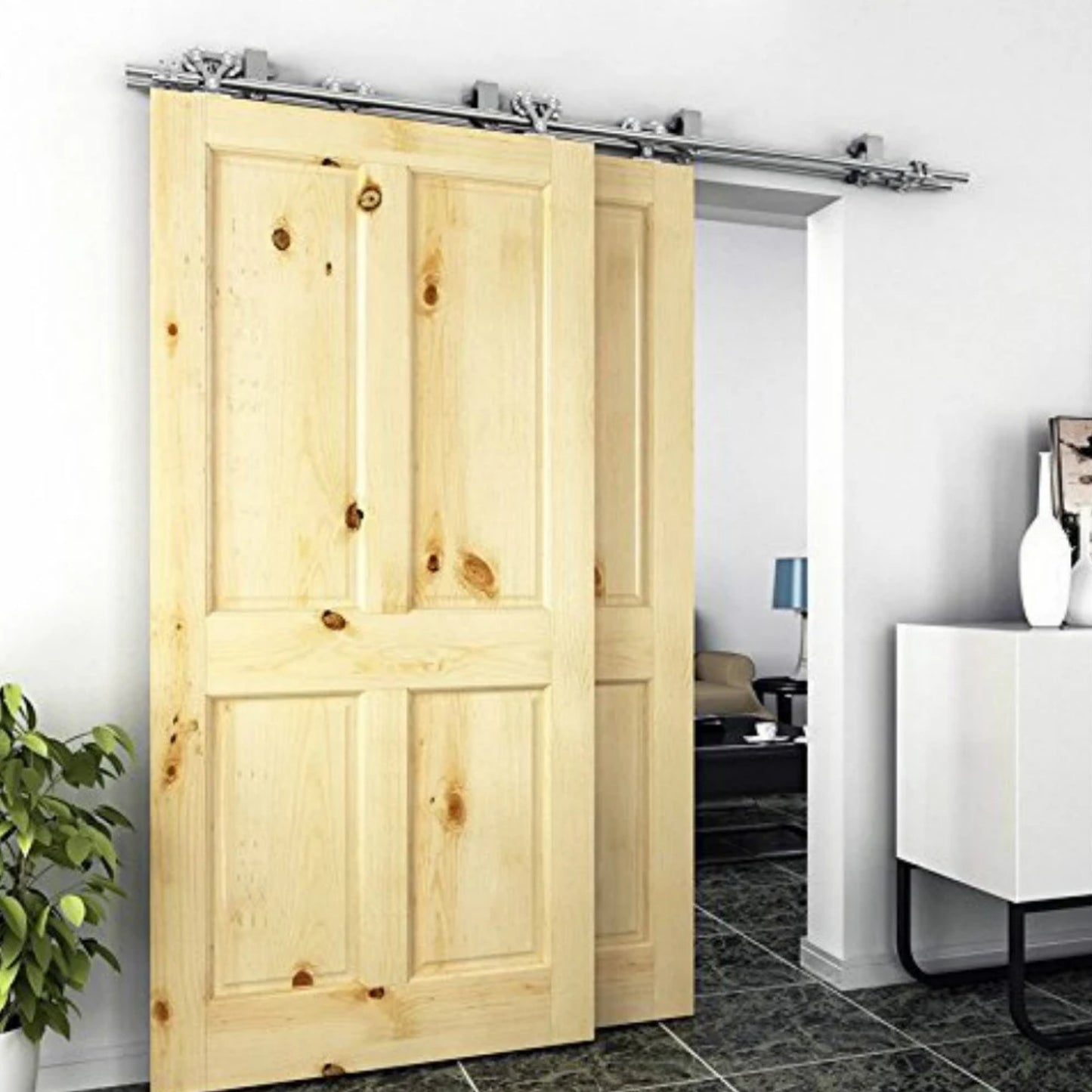

DUAL WHEEL Bypass Brushed Stainless Steel Top Mounted Sliding Barn Door Hardware Wood Door Sliding Track Kit Set For 2 Doors and 4 Doors

HARDWARE ONLY, DOOR NOT INCLUDED

* Bypass Kit is a perfect solution of installtions for the customer who don't have enough space to install bi-parting system.
**Track length must be longer than the door opening ( wall to wall distance).
** Make 2pcs of each door panel a little wider to cover the door opening
     If door opening is 60", 2pcs of each door panel width can be 34" ( door opening/2+4")

*The track had been pre-drilled holes which is NOT 16" apart.  NOT suitable for 16" apart studs wall.

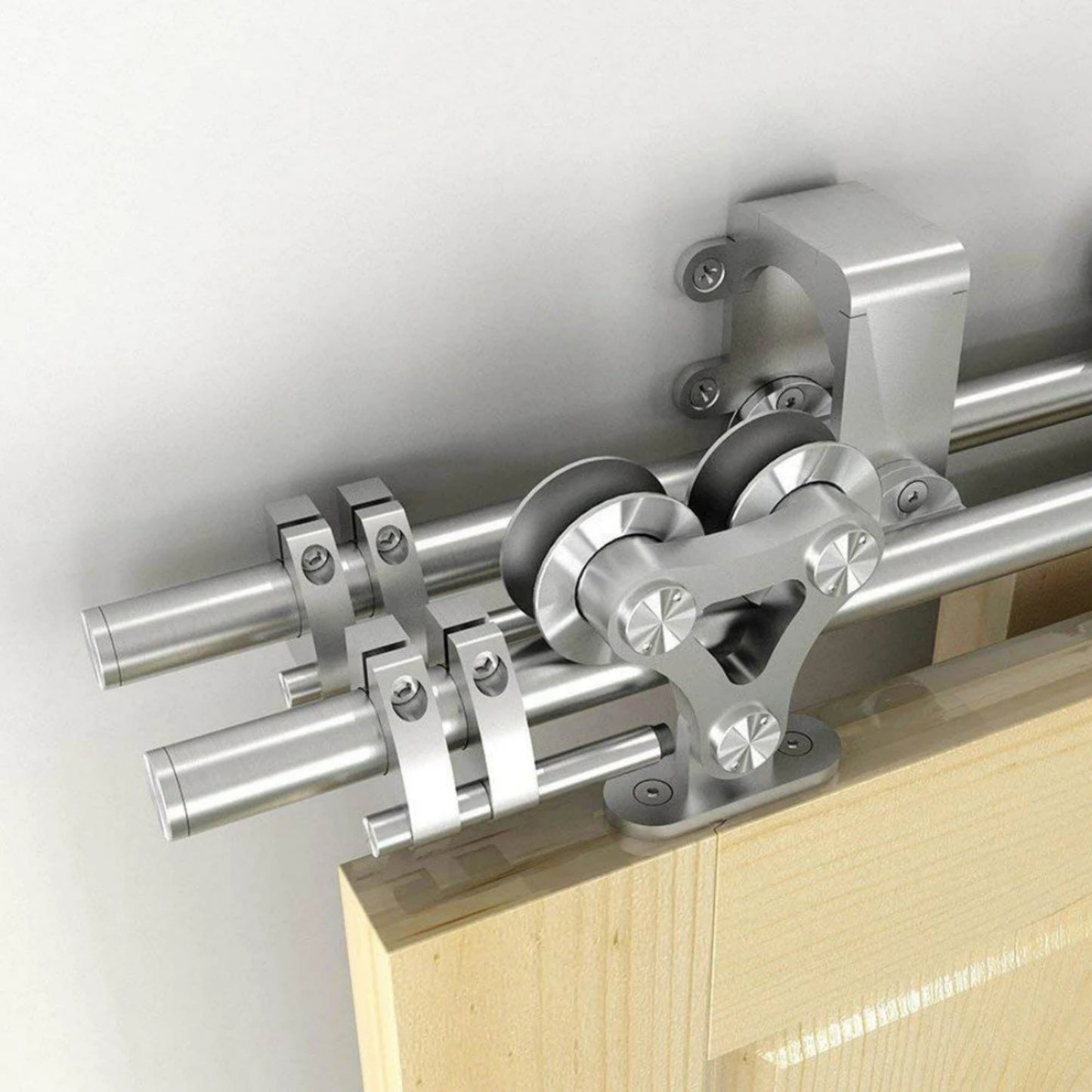

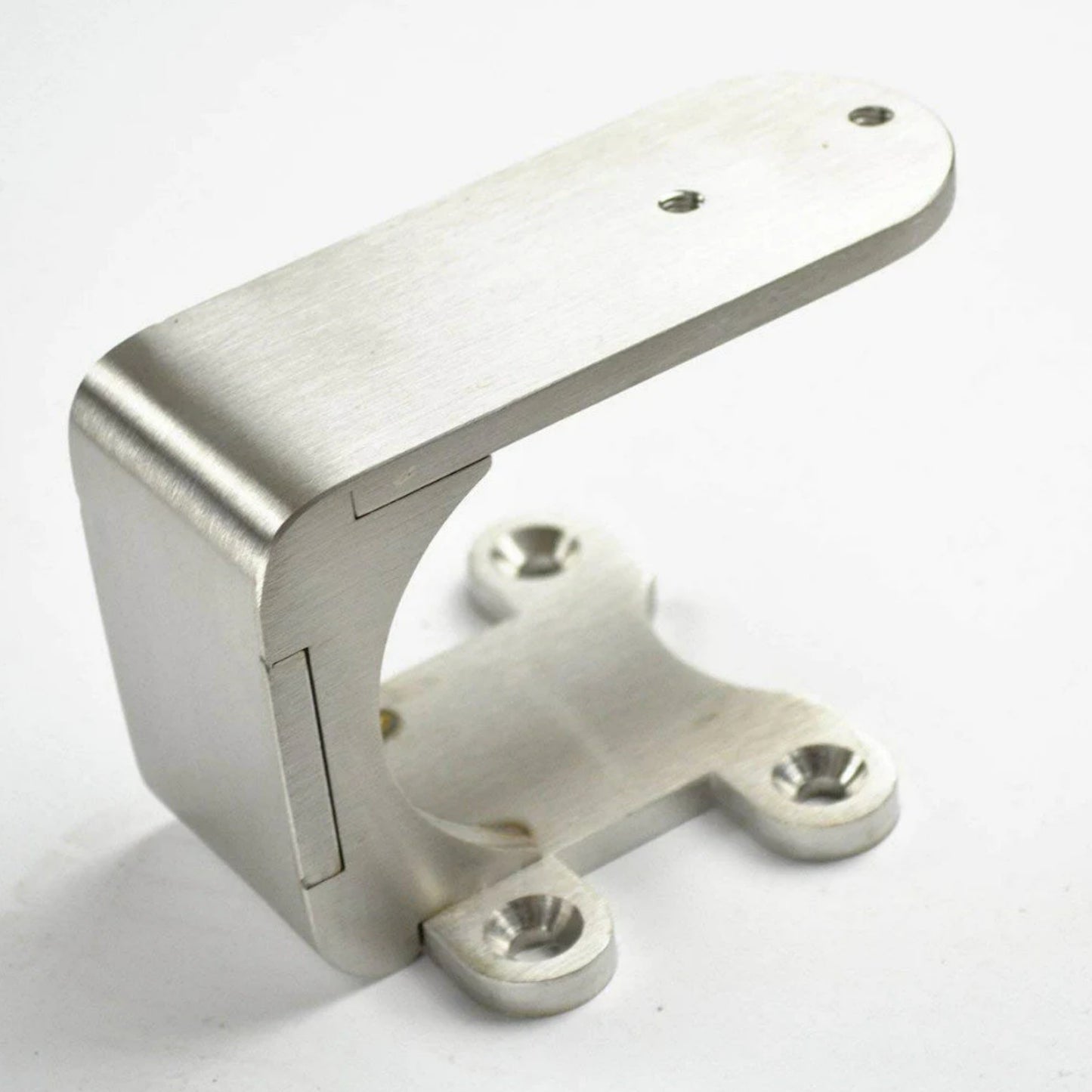

*we are using N shape to reduce bypass bracket's length to make full system can be used for limited space.

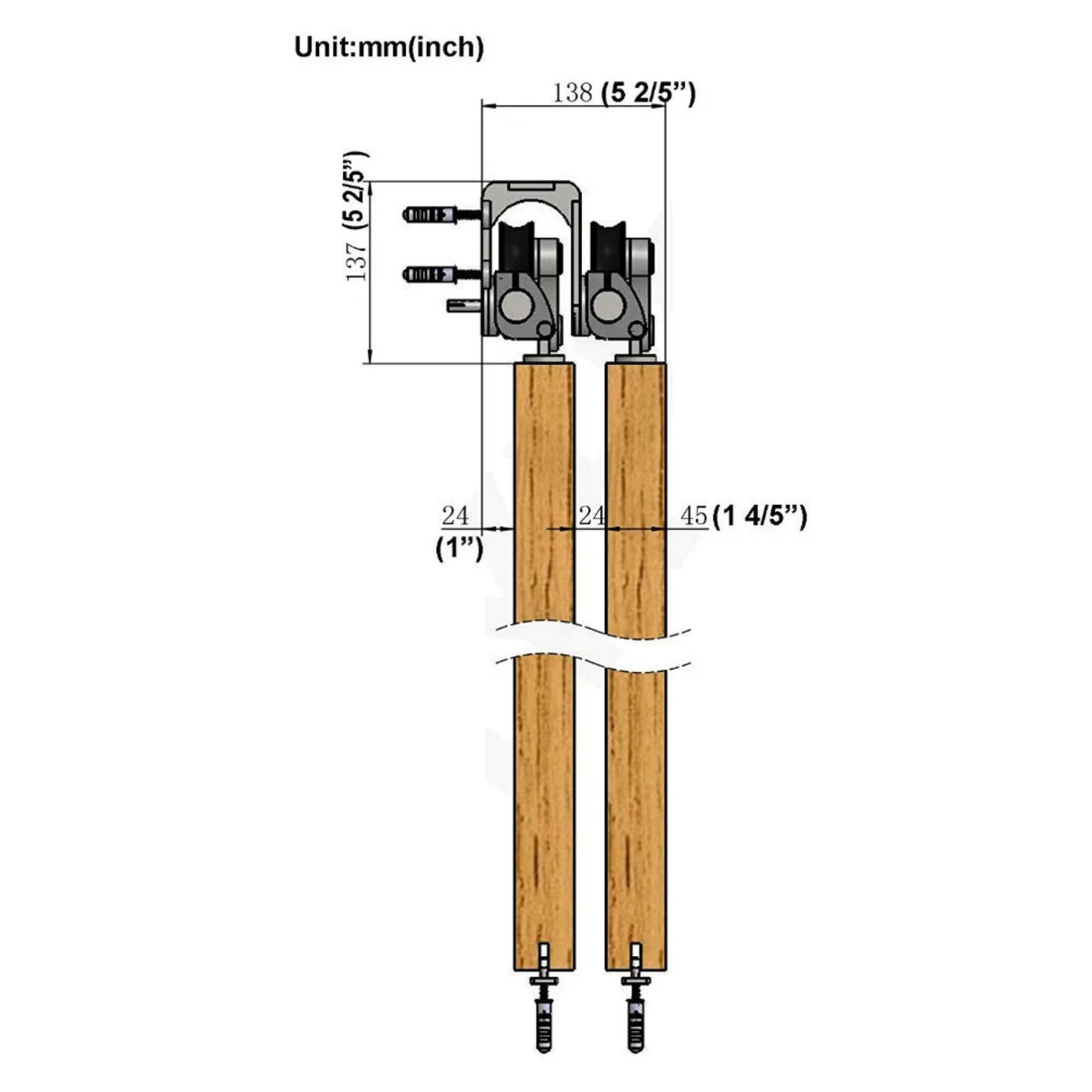

 ***The length from the top of the door to the top of the roller is about 137mm,need at least 160mm for installation.
***The gap between door panel and the wall is about 24mm based on door panel thickness 45mm


Features:
Precision Craftsmanship
Made with high quality
Elegance and function in one Beautiful and affordable
5 years quality warranty

Specifications:
Material:  AISI304
Finish: Brushed Satin
Two Rollers Max. Door Weight Capacity: 90KGS
Door Thickness:  40-45mm thick

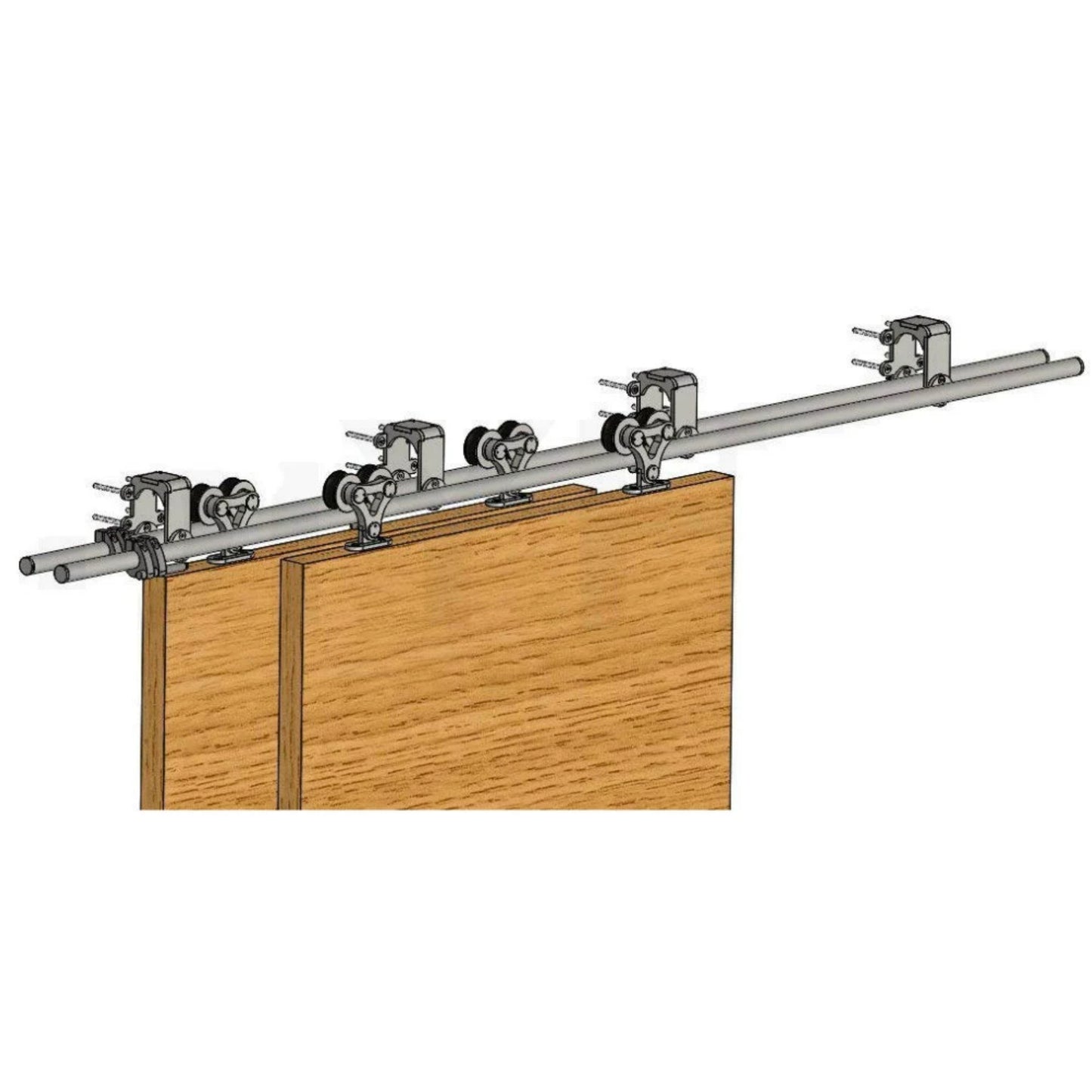

2 Doors Bypass:
5FT/ 6FT/ 6.6FT Kit Package Includes:
( 1 set) Wall Attachments & Spacers: Mount rail to wall
(4 pcs) Door Stops: Keep rollers on rail

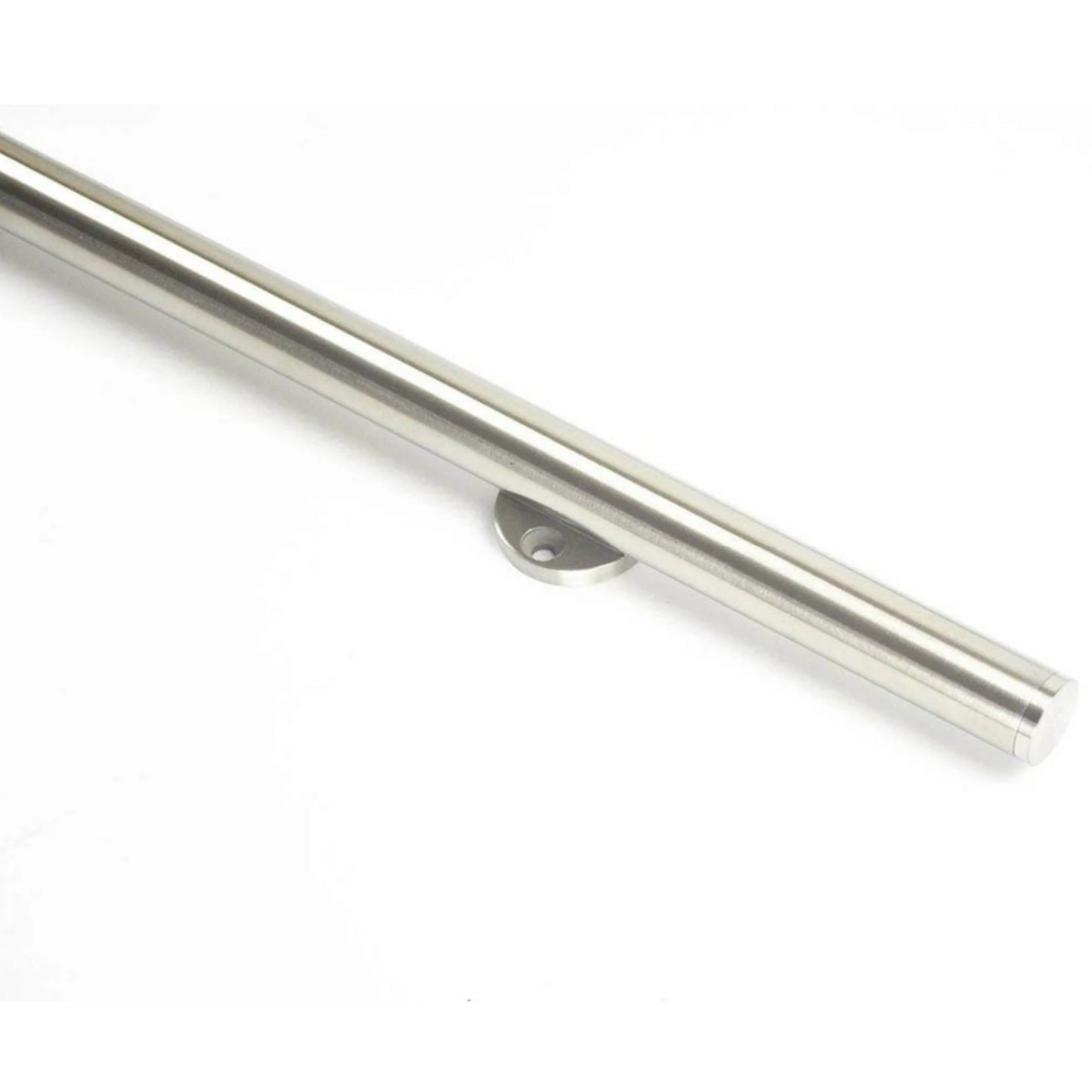

(2 pcs) 5FT/ 6FT / 6.6FT Rail: With pre-drilled holes for wall attachments

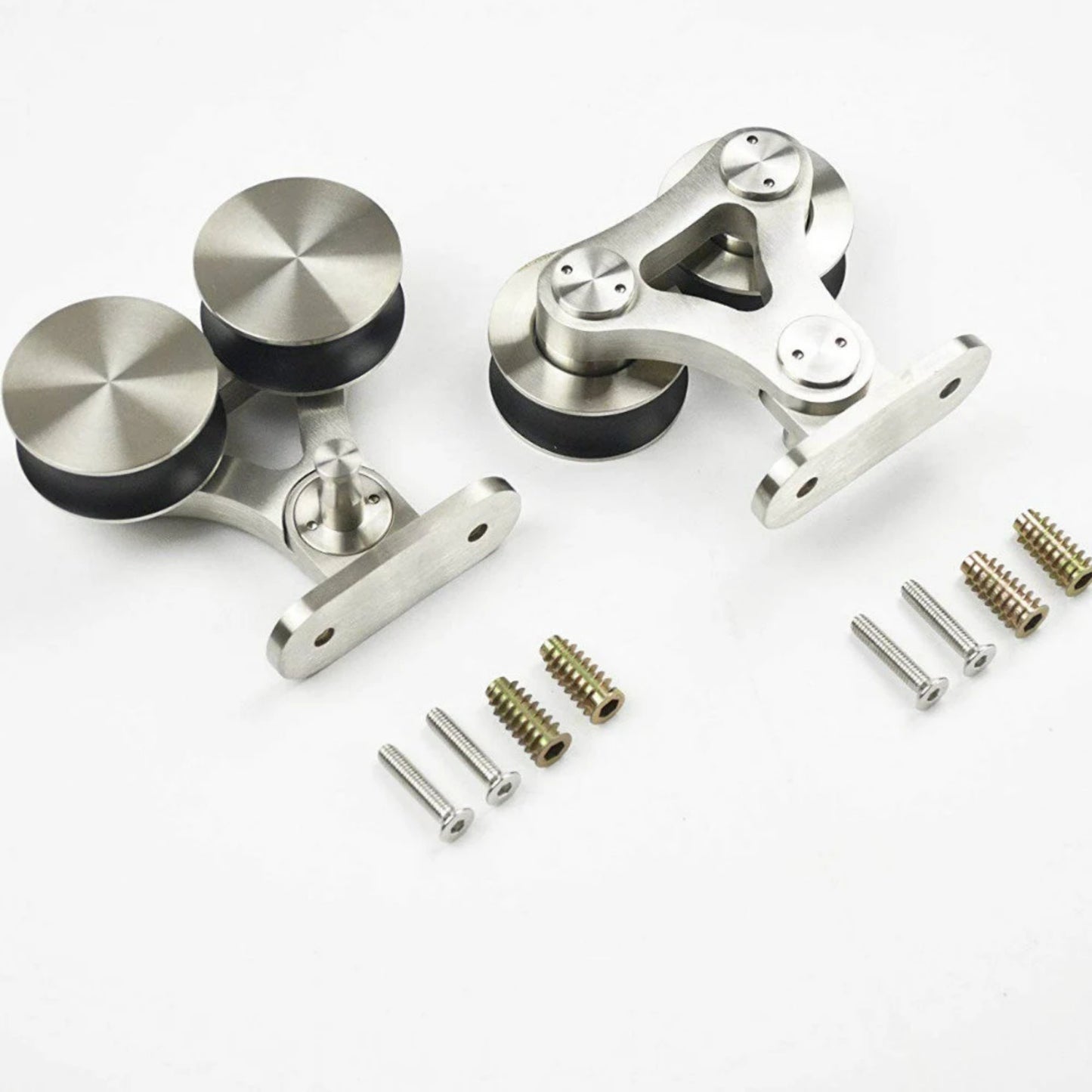

(4 pcs) Rollers: For use with door
(2 pcs) Floor Guide: Keep door in its position
(1 set) Bypass connector
(1 pcs) Installation Manual

2 Doors Bypass:
8FT Kit Package Includes:
( 1 set) Wall Attachments & Spacers: Mount rail to wall
(4 pcs) Door Stops: Keep rollers on rail
(4 pcs) 4FT Rail: With pre-drilled holes for wall attachments

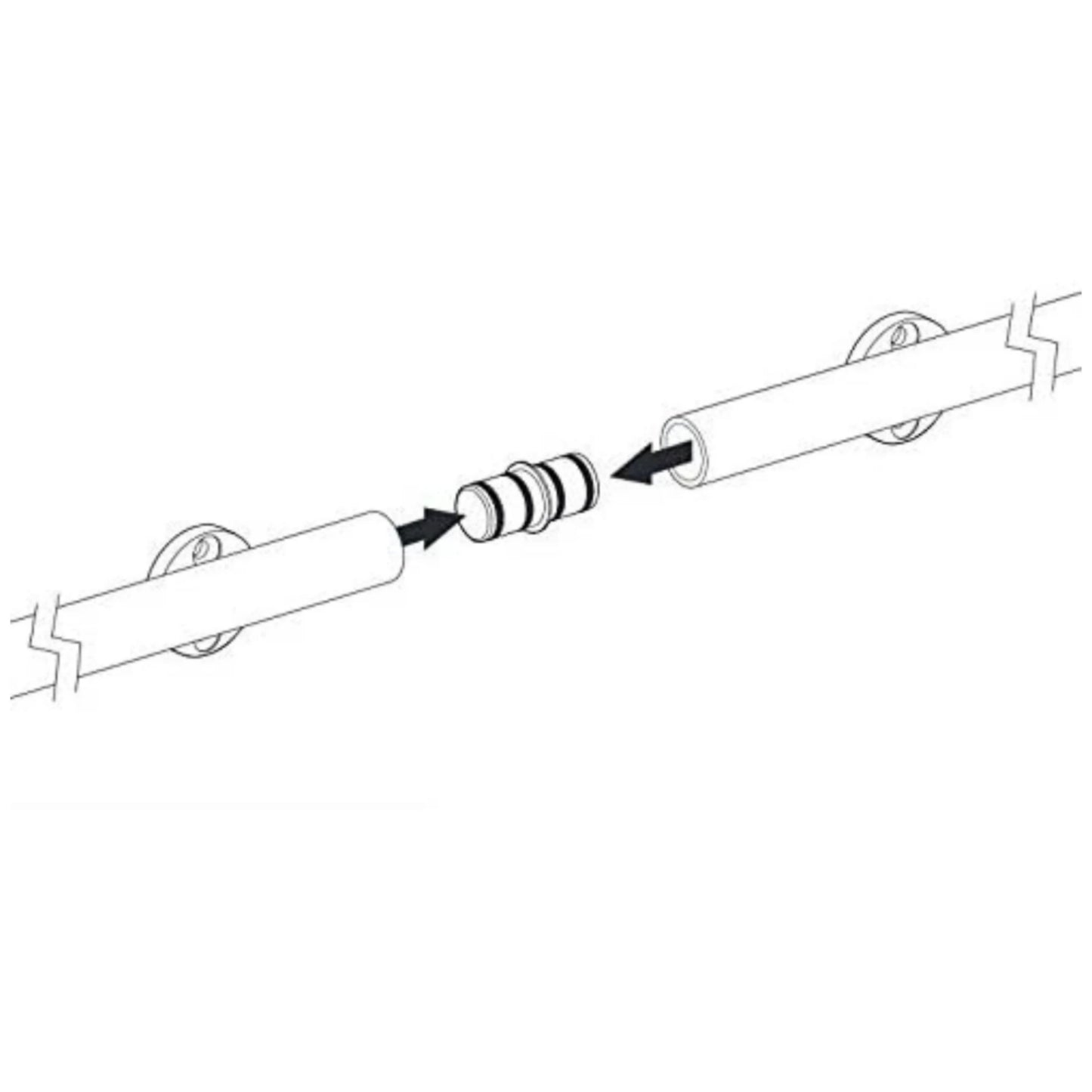

(2 pcs) Rail connector
(4 pcs) Rollers: For use with door
(2 pcs) Floor Guide: Keep door in its position
(1 set) Bypass connector
(1 pcs) Installation Manual

4 Doors Bypass:
10FT/ 12FT/ 13.2FT(4m)  Kit Package Includes:
( 1 set) Wall Attachments & Spacers: Mount rail to wall
(8 pcs) Door Stops: Keep rollers on rail
(4 pcs) 5FT/ 6FT/ 6.6FT Rail: With pre-drilled holes for wall attachments
(2 pcs) Tube to Tube connector
(8 pcs) Rollers: For use with door
(4 pcs) Floor Guide: Keep door in its position
(1 set) Bypass connector
(1 pcs) Installation Manual


About taxes or duties:
All of our price don't include the Taxes or duties or VAT , pls kindly note, thanks.

After-sale service:
***If you received damaged items ,please kindly take a photo and e-mail us ASAP,
Any problem please contact us freely, we will try our best to solve it out, thank you!
***We can NOT accept returns at nowadays,because of the high shipping cost for internation shipping.
