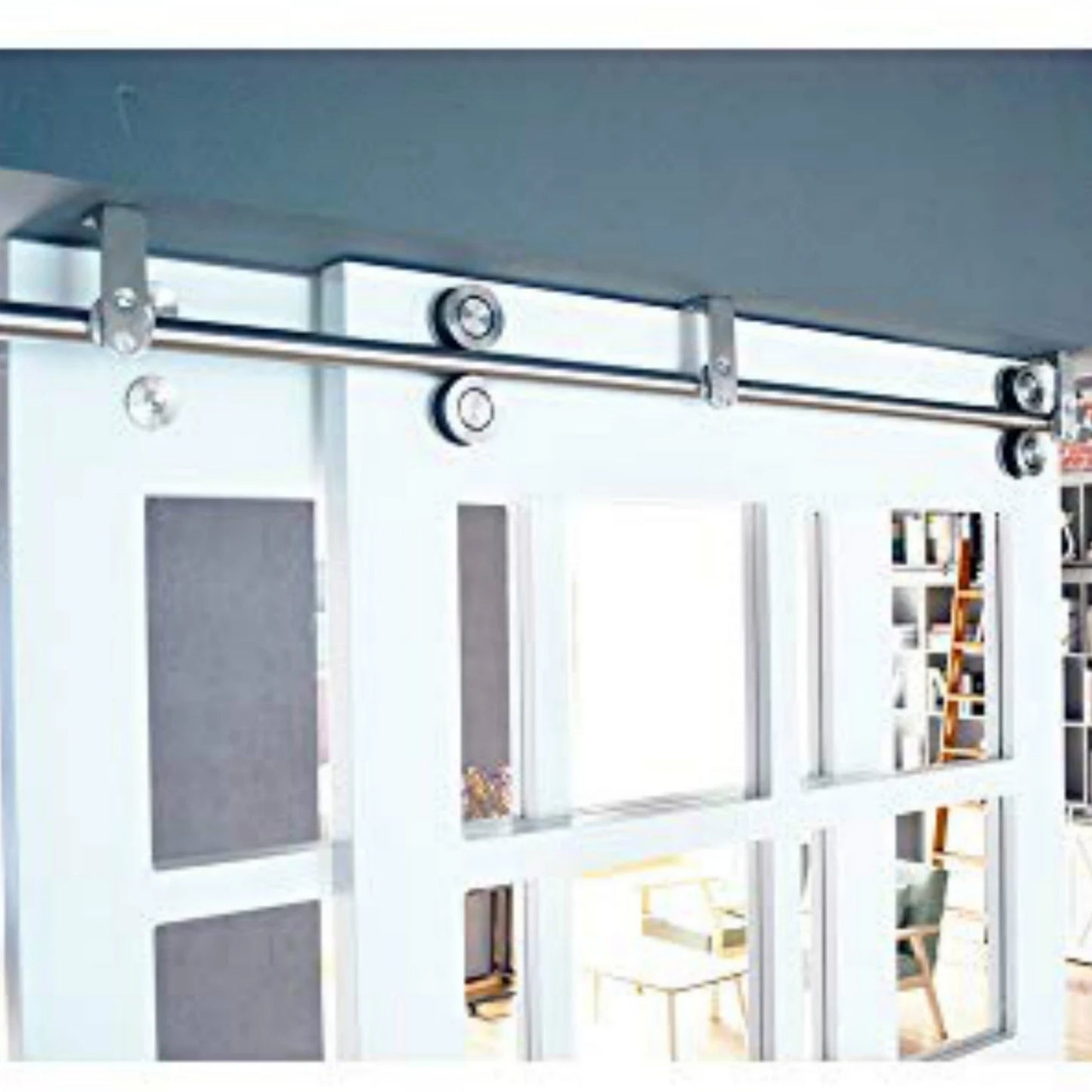

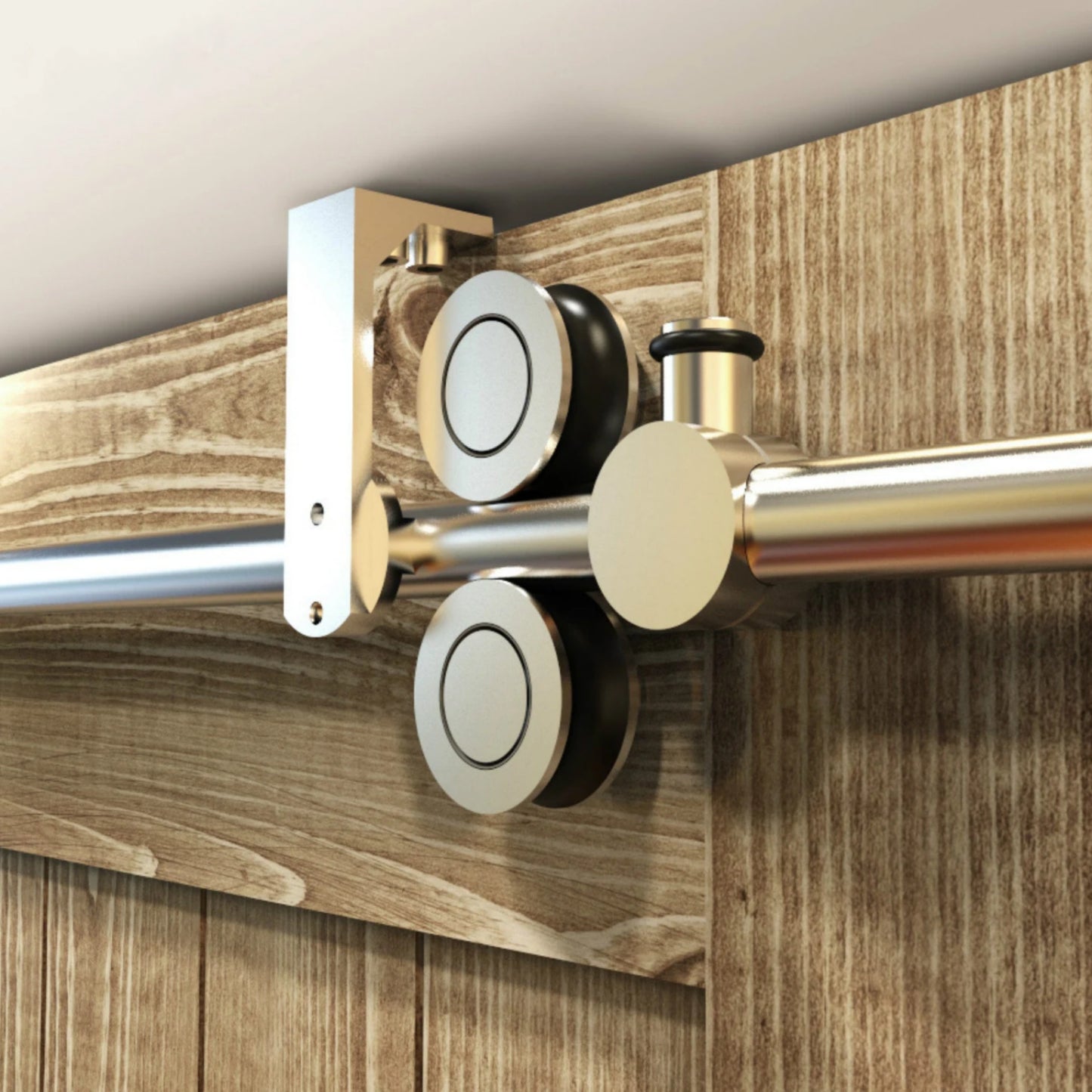

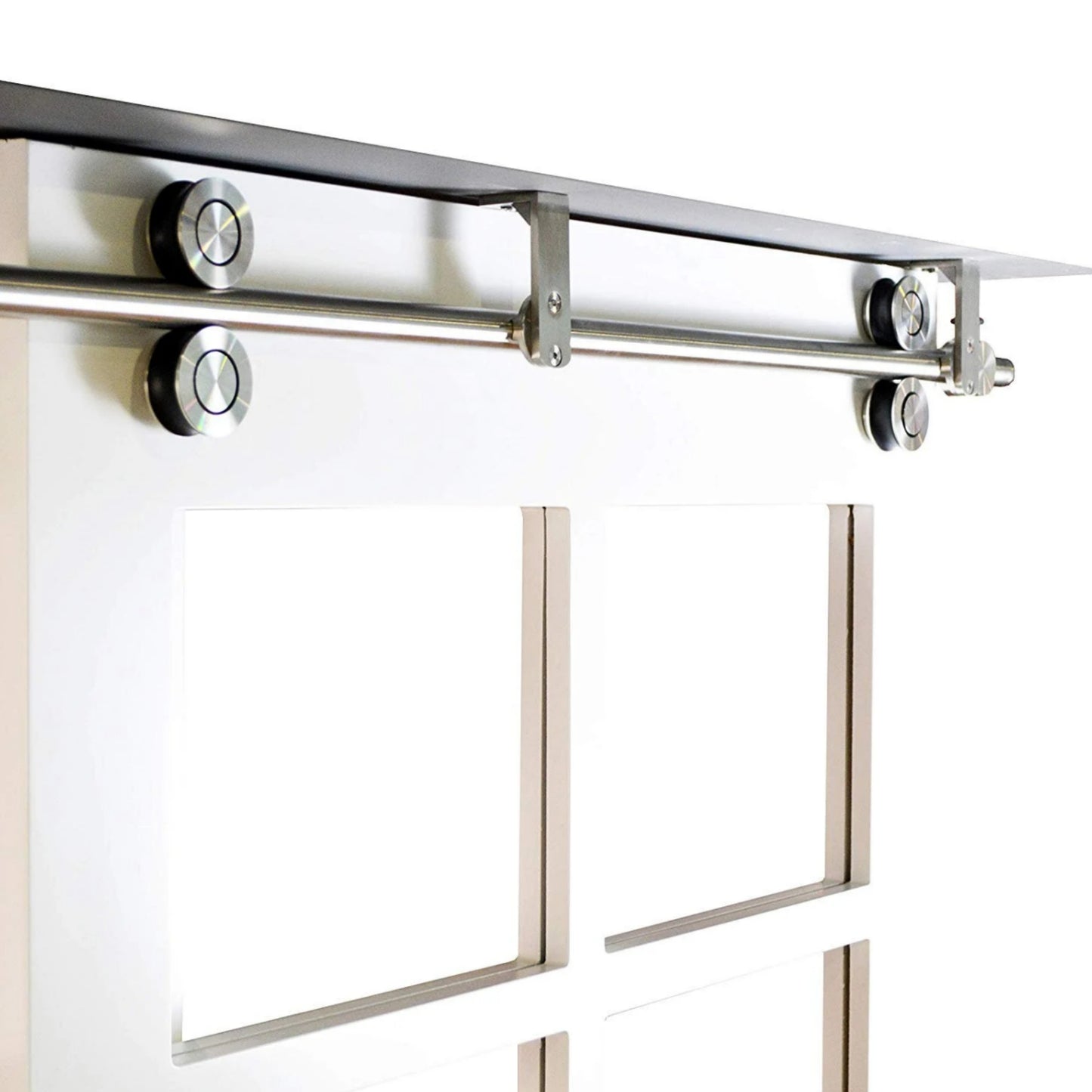

Top ceiling mount bracket brushed stainless steel wood sliding single door hardware BI-PARTING door BYPASS barn door hardware track kit

Barn doors have a beautiful rustic charm that hails from a classic American style. Charming in their own way, they can create eye-catching modern accents. So why not bring some of that simple, industrial charm into your living space with the help of Barn Door Hardware Kit Set?

HARDWARE ONLY, DOOR NOT INCLUDED, DOOR HANDLE NOT INCLUDED

Important:
This item has supper small gap between the top of the door panel and the ceiling, and controllable gap between door and wall.
Pre-drilled holes on the track for ceiling bracket, the kit can't be used for studs wall .
Ceiling mount bracket barn door track kit mainly suitable for the openning that don't have enough space to install wall mount track.
Pls make sure your ceiling is strong enough to hang door panel
Door thickness: 35-45mm thick

**Door height is ceiling height minus 9/16" (14mm)
**Need Drill holes on the door panel ( the length from center hole to the top of the door panel is 1-9/16”(40mm)

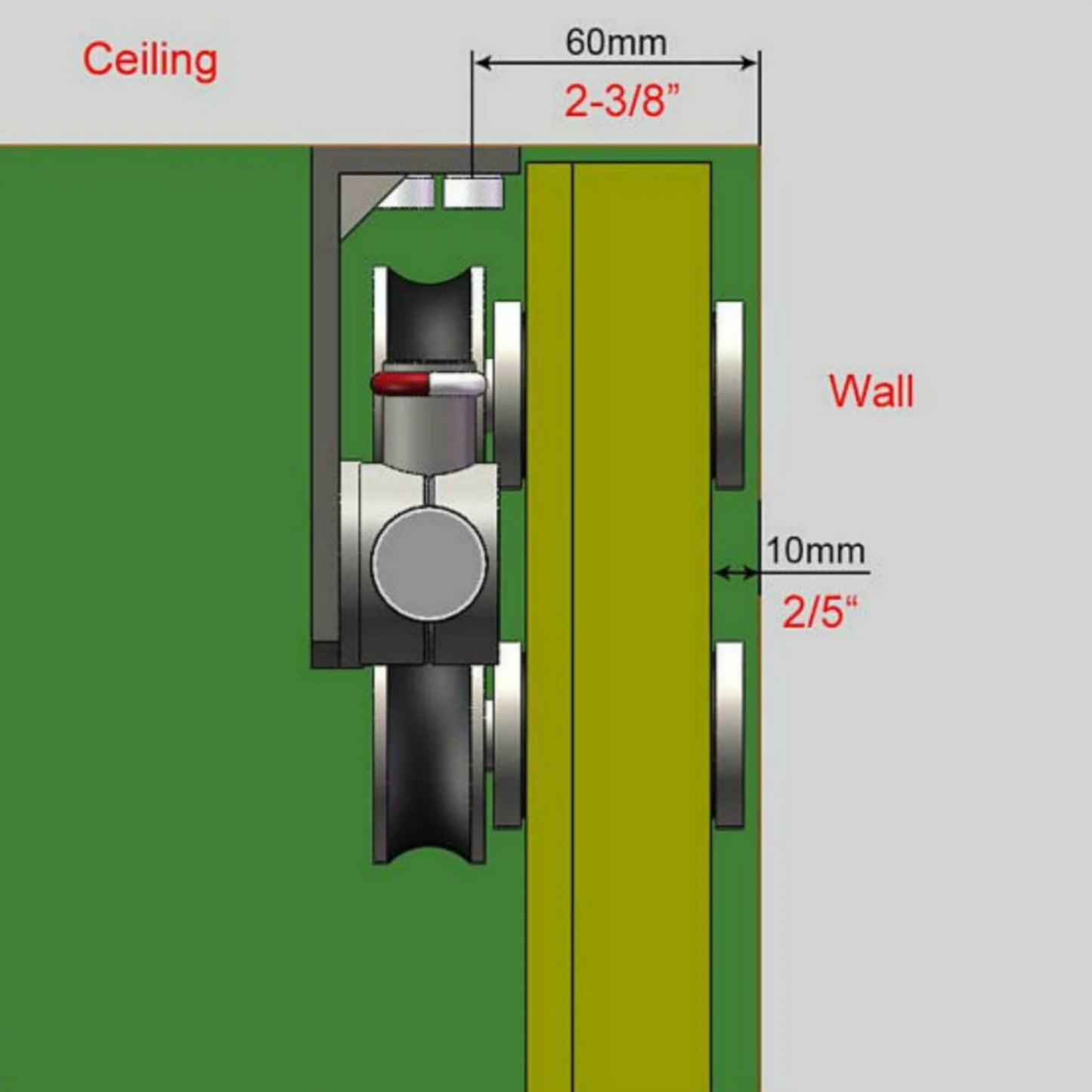

**The ceiling bracket center hole ( near to door panel) to the wall length is 2-3/8"(60mm)
**Two rollers Can bear MAX weight:90kg

Features:
Precision Craftsmanship
Elegance and function in one Beautiful and affordable
Brushed stainless steel 304
5 years quality warranty

For single door kit and biparing door kit,
Track's length should be twice of the door panel's width ( 200cm / 6.6ft track---100cm door panel )
For Bypass door kit,
If door opening is 60", 2pcs of each door panel width can be 34" ( door opening/2+4")

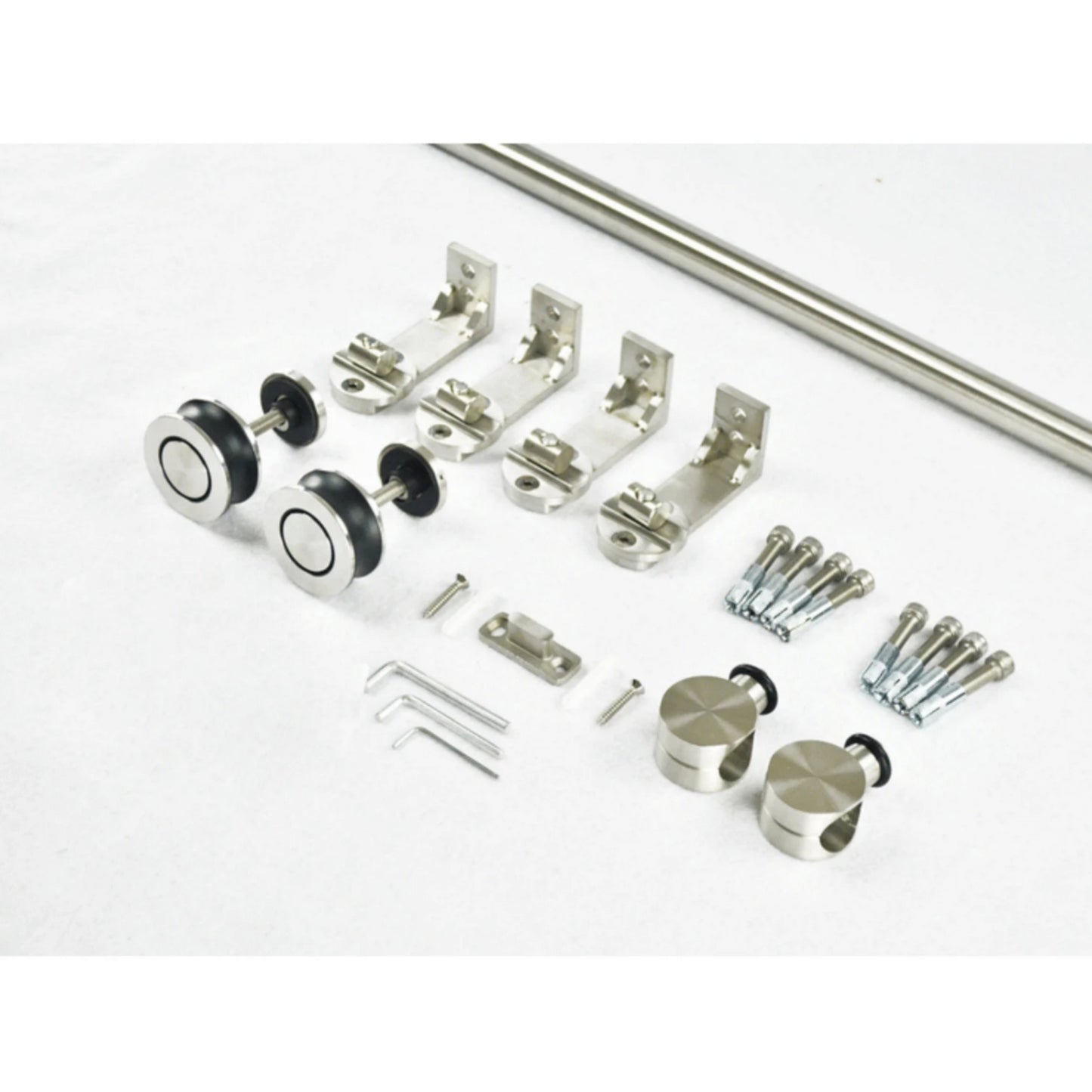

Single Door Kit:

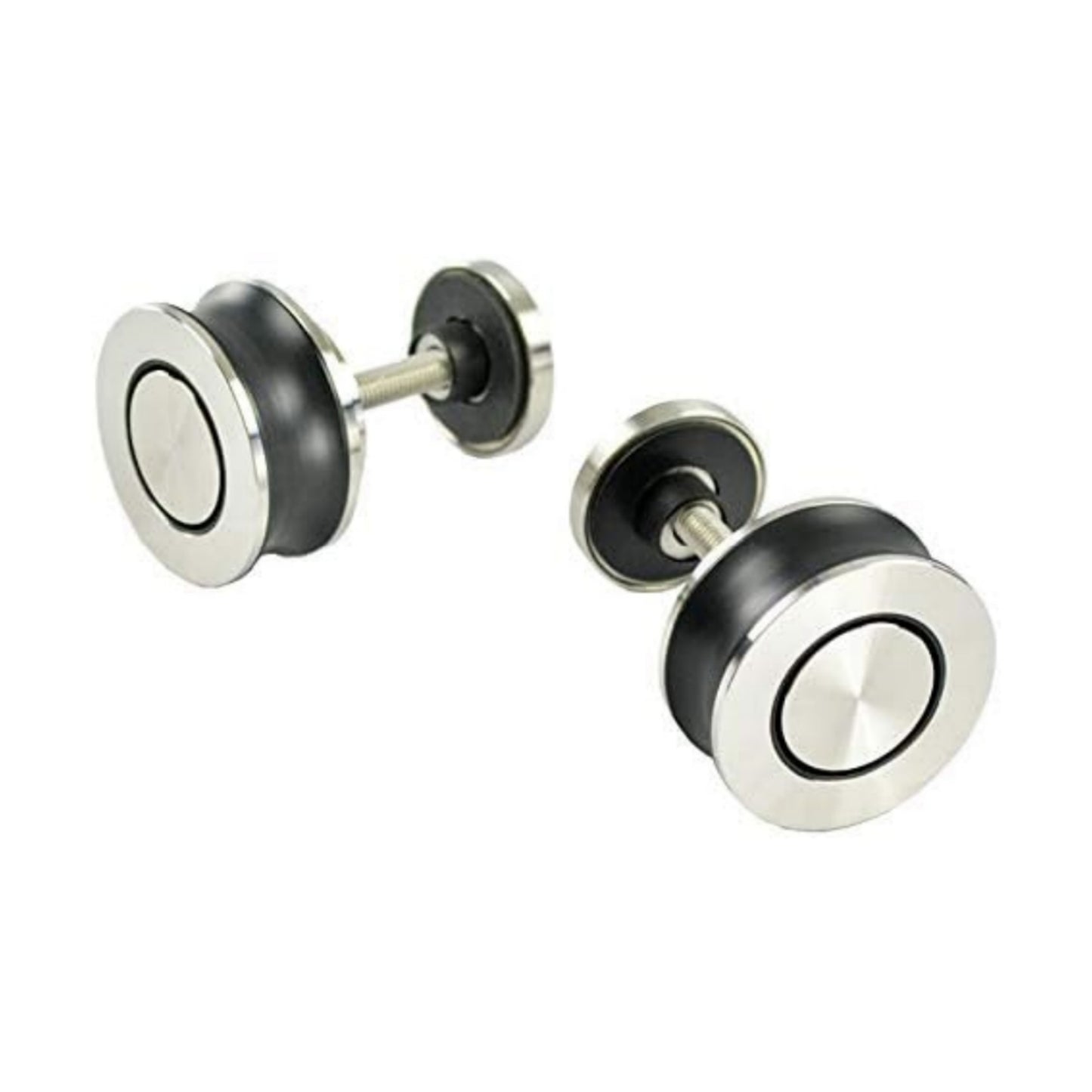

Roller :4pcs
Stopper:2pcs
Sliding track:1pcs*post length ( 1pc 8ft / 10ft / 11ft track = 2pcs 4ft / 5ft / 5.5ft  track + 1pc connector)
L Ceiling mount bracket : 1set
Floor guide:1pc
Installation manual: 1pc

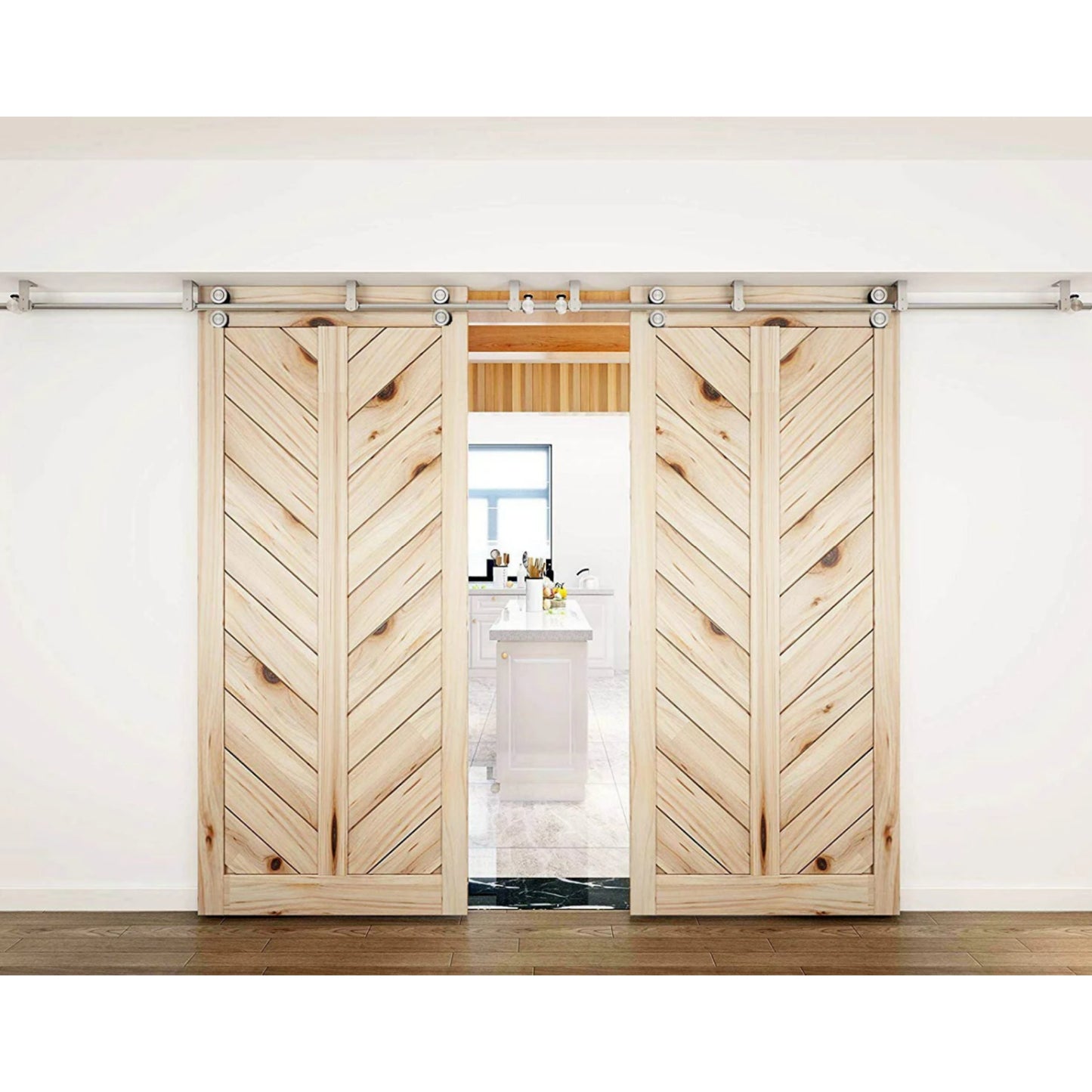

Bi-Parting Door Kit: 2 set * Single Door Kit + 1pc tube connector

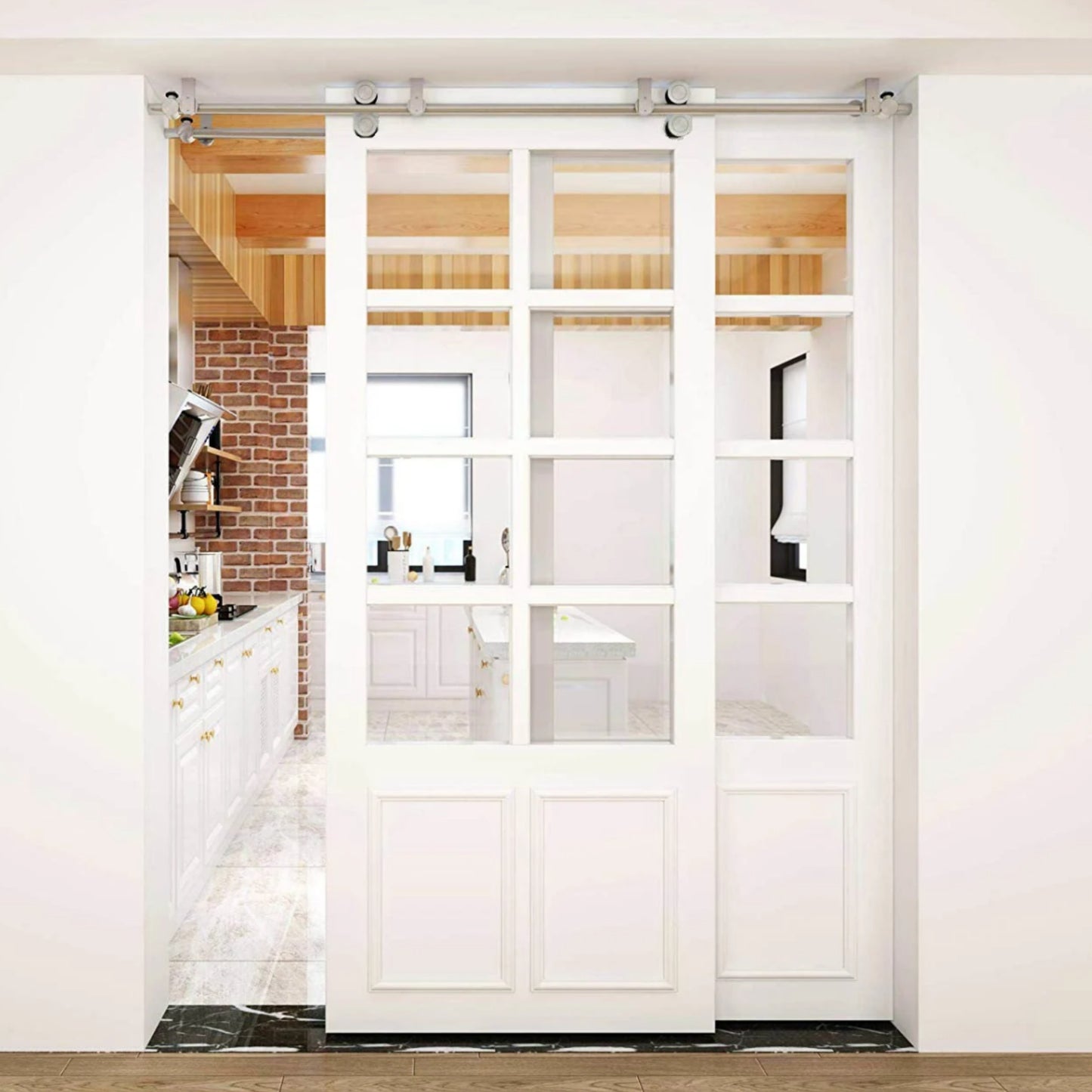

Bypass Door kit : 2 set * Single door kit

18FT 4 Doors Bypass kit： （ 2sets 18FT bi-paring door kit in front and back）
Roller : 16pcs
Stopper: 8pcs
Sliding track: 6pcs *6FT
L Ceiling mount bracket : 1 set
Tube connector: 4pcs
Floor guide:4pcs
Installation manual: 1pc

How to install:
Step 1:
Prepare door panel and hardware:
Door panel's height is ceiling height-14mm,pls use thickness 40mm door panel.

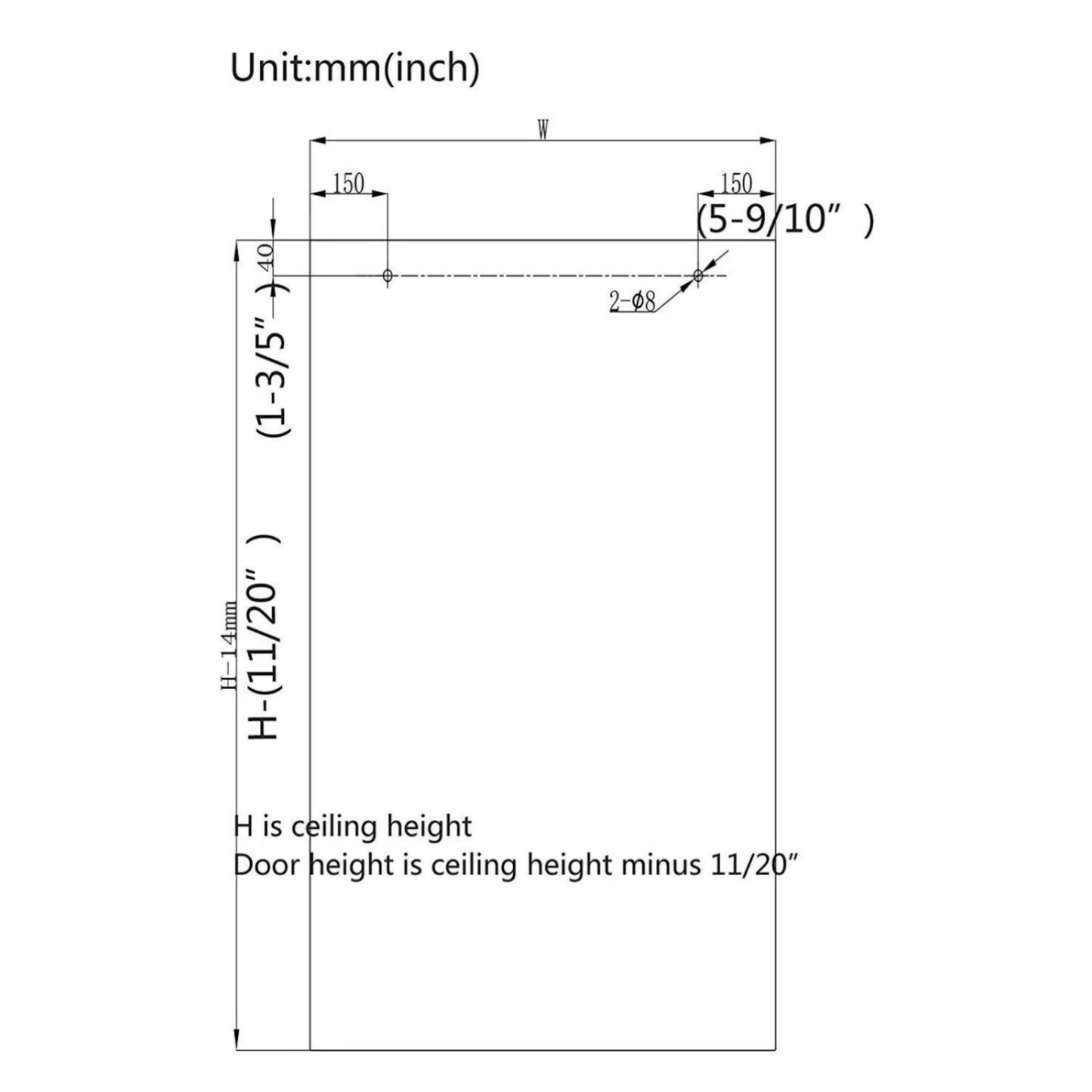

Drill two holes on the door panel and cut a groove on the bottom of the door,attached is a hole drawing for your reference.
Step 2:
Fix rollers on the door panel.
Step 3:
Put two stops on the track and found a best place before install ceiling bracket.
Step 4:
Fix track on the ceiling:
Release the screws on the ceiling bracket and fix half part(round) on the track,the other part(L) tight on the ceiling.
A:release the little screws on the round part,put the cyliner piece inside of the track then tight the screws,pls see attached photo.
B：stand the door up and found a best place on the ceiling to install L part bracket(you can decide the gap between door and wall).
C:tight the L part on the ceiling,then put two bracket parts together.
Step 5:
Install floor guide
