Top ceiling mount brushed stainless steel wood sliding single door hardware biparting door bypass barn door hardware ceiling bracket

Barn doors have a beautiful rustic charm that hails from a classic American style. Charming in their own way, they can create eye-catching modern accents. So why not bring some of that simple, industrial charm into your living space with the help of Barn Door Hardware Kit Set?

HARDWARE ONLY, DOOR NOT INCLUDED, DOOR HANDLE NOT INCLUDED

Important:
This item has supper small gap between the top of the door panel and the ceiling, and controllable gap between door and wall.
Pre-drilled holes on the track for ceiling bracket, the kit can't be used for studs wall .
Ceiling mount bracket barn door track kit mainly suitable for the openning that don't have enough space to install wall mount track.
Pls make sure your ceiling is strong enough to hang door panel
Door thickness: 35-45mm thick

**Door height is ceiling height minus 9/16" (14mm)
**Need Drill holes on the door panel ( the length from center hole to the top of the door panel is 1-9/16”(40mm)
**The ceiling bracket center hole ( near to door panel) to the wall length is 2-3/8"(60mm)
**Two rollers Can bear MAX weight:90kg

Features:
Precision Craftsmanship
Elegance and function in one Beautiful and affordable
Brushed stainless steel 304
5 years quality warranty

For single door kit and biparing door kit,
Track's length should be twice of the door panel's width  ( 200cm / 6.6ft track---100cm door panel )
For Bypass door kit,
If door opening is 60", 2pcs of each door panel width can be 34" ( door opening/2+4"),
***The depth of the top of the ceiling needs at least 7 3/8 inches to create bypass door kit.

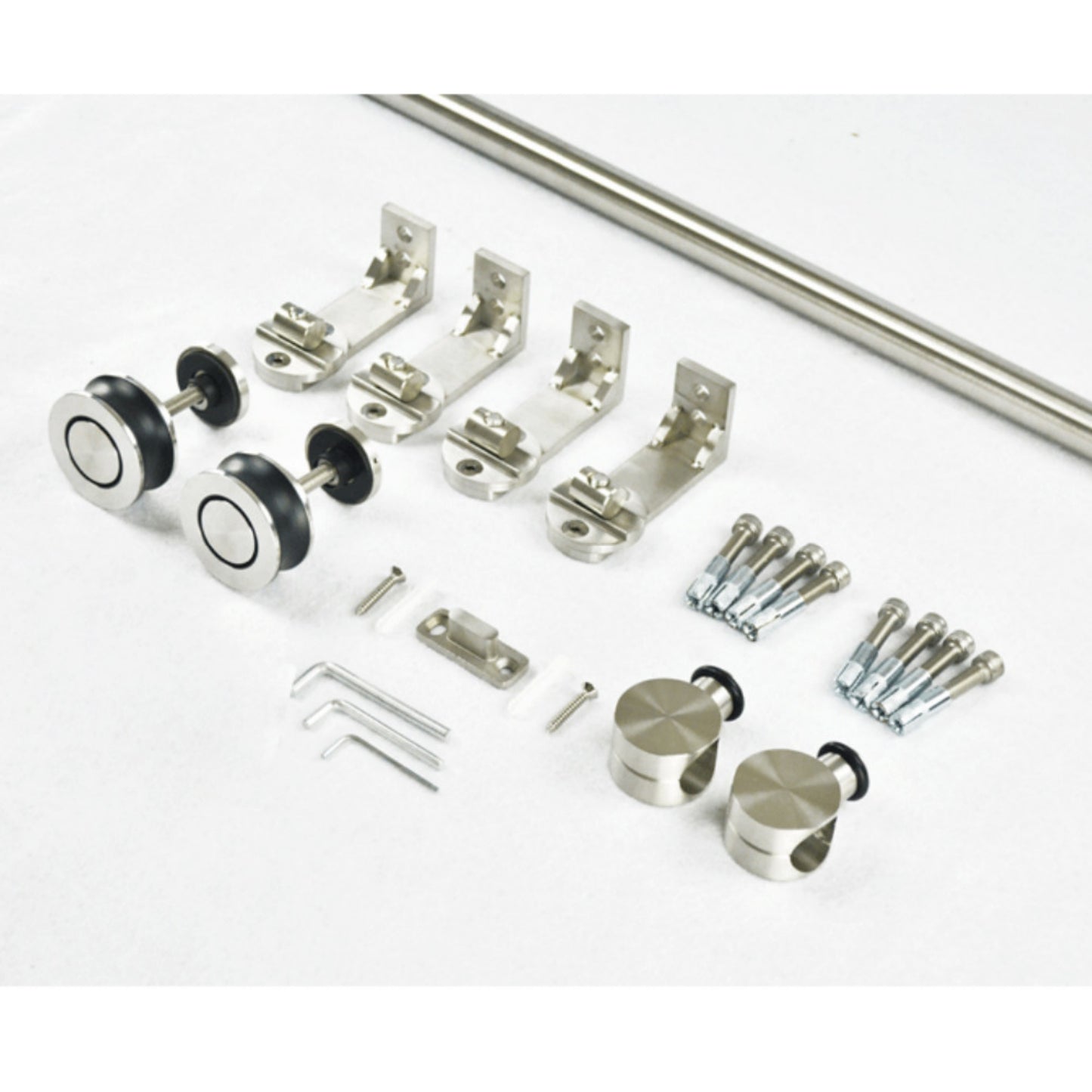

Single Door Kit:
Roller :2pcs
Stopper:2pcs
Sliding track:1pc*5FT /5.5FT /6FT /6.6FT
L Ceiling mount bracket : 1set
Floor guide:1pc
Installation manual: 1pc

8FT / 10FT  single door kit:
Roller :2pcs
Stopper:2pcs
Sliding track:2pcs*4FT / 5FT
Track connector: 1pc
L Ceiling mount bracket : 1set
Floor guide:1pc
Installation manual: 1pc

Bi-Parting Door Kit:   2 set * Single Door Kit + 1pc track connector
Bypass  Door kit :      2 set * Single door kit

10FT/ 11FT / 12FT / 13.2FT (4m) bypass kit :
Roller : 8pcs
Stopper:8pcs
Sliding track: 4pcs *5FT / 5.5FT / 6FT / 6.6FT
L Ceiling mount bracket : 1 set
Tube connector: 2pcs
Floor guide:4pcs
Installation manual: 1pc

12FT 3 Doors Bypass Kit :
Roller : 6pcs
Stopper:6pcs
Sliding track: 4pcs 6FT
L Ceiling mount bracket : 1 set
Tube connector: 2pcs
Floor guide:3pcs
Installation manual: 1pc

How to install:
Step 1:
Prepare door panel and hardware:
Door panel's height is ceiling height-14mm,pls use thickness 40mm door panel.

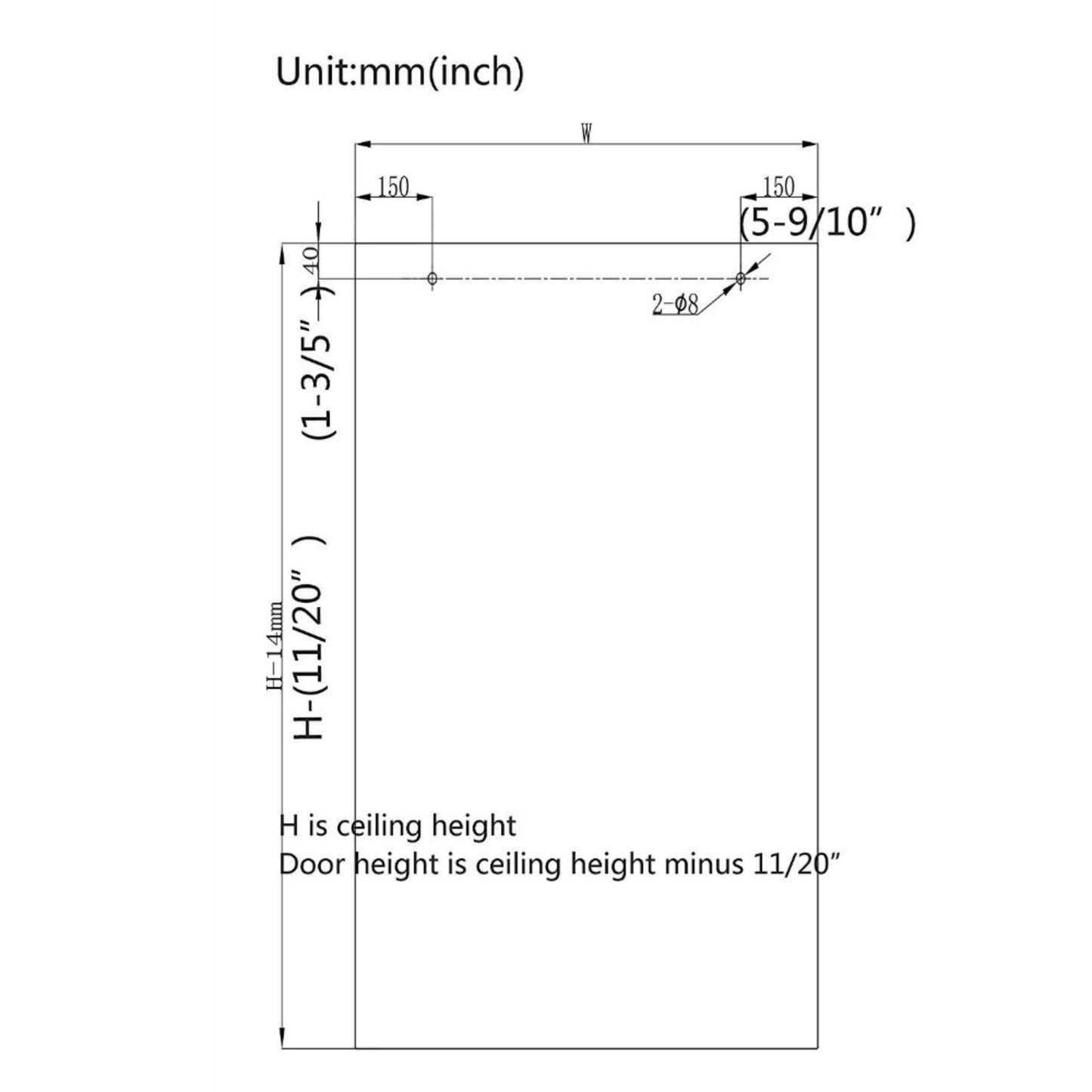

Drill two holes on the door panel and cut a groove on the bottom of the door,attached is a hole drawing for your reference.
Step 2:
Fix rollers on the door panel.
Step 3:
Put two stops on the track and found a best place before install ceiling bracket.
Step 4:
Fix track on the ceiling:
Release the screws on the ceiling bracket and fix half part(round) on the track,the other part(L) tight on the ceiling.
A:release the little screws on the round part,put the cyliner piece inside of the track then tight the screws,pls see attached photo.
B：stand the door up and found a best place on the ceiling to install L part bracket(you can decide the gap between door and wall).
C:tight the L part on the ceiling,then put two bracket parts together.
Step 5:
Install floor guide

Shipping:
***pls you have custom need,pls contact us
***If you received damaged items ,please kindly take a photo and e-mail us ASAP,
Any problem please contact us freely, we will try our best to solve it out, thank you!
***We can NOT accept returns at nowaday,because of the high shipping cost for internation shipping.

About taxes or duties:
All of our price don't include the Taxes or duties or VAT , pls kindly note, thanks.
Most package to USA won't course taxes.
To canada may course CAD 15-30 for reference.
To European country may course EUR 35-50 for reference.
For detailed cost, pls kindly ask your local custom.
